TK5

This TK5 kit enables the fitting of a TRi, runner set to any Tillett car seat equipped with base mounting points.

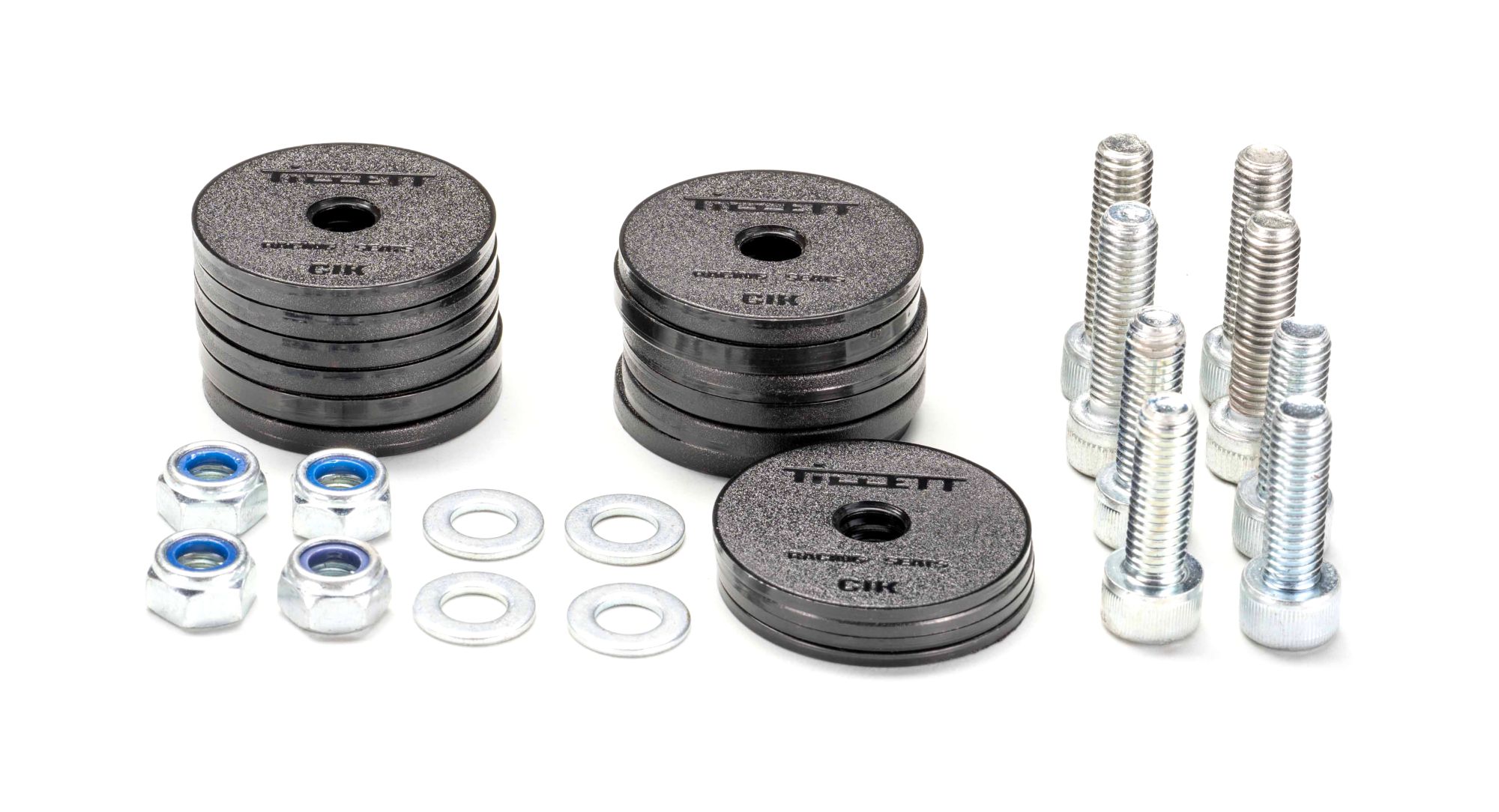

TK5 KIT CONTAINS

• 12 x 40 mm diameter x 4 mm thick Nylon spacers.
• 4 x 40 mm diameter x 2 mm thick Nylon spacers.
• 4 x M8 x 30 mm 12.9 strength cap head bolts, to fit through runners and spacers into the seat.
• 4 x M8 x 25 mm 12.9 strength cap heads bolts, for fitting the runners to the floor.
• 4 x M8 Nylock nuts.
• 4 x M8 zinc washers.

KEY FEATURES

• This kit enables you to fit a base mounted Tillett car seat onto a set of our runners.

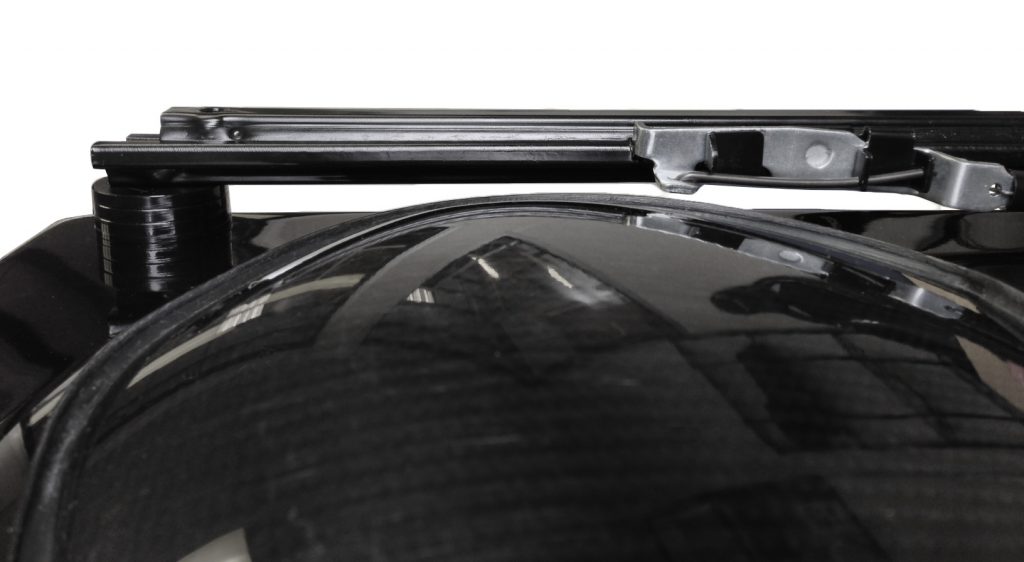

• The spacer kit is used to prevent the runners contacting the dome of the seat.
• Manipulating the spacers will allow a small amount of angle change.
• Intended for base mounted car seats such as B6, B6 XL, (W1i, W3, W4 & W2i – backframe versions).
• Weight 215g.
• Made in the UK.
