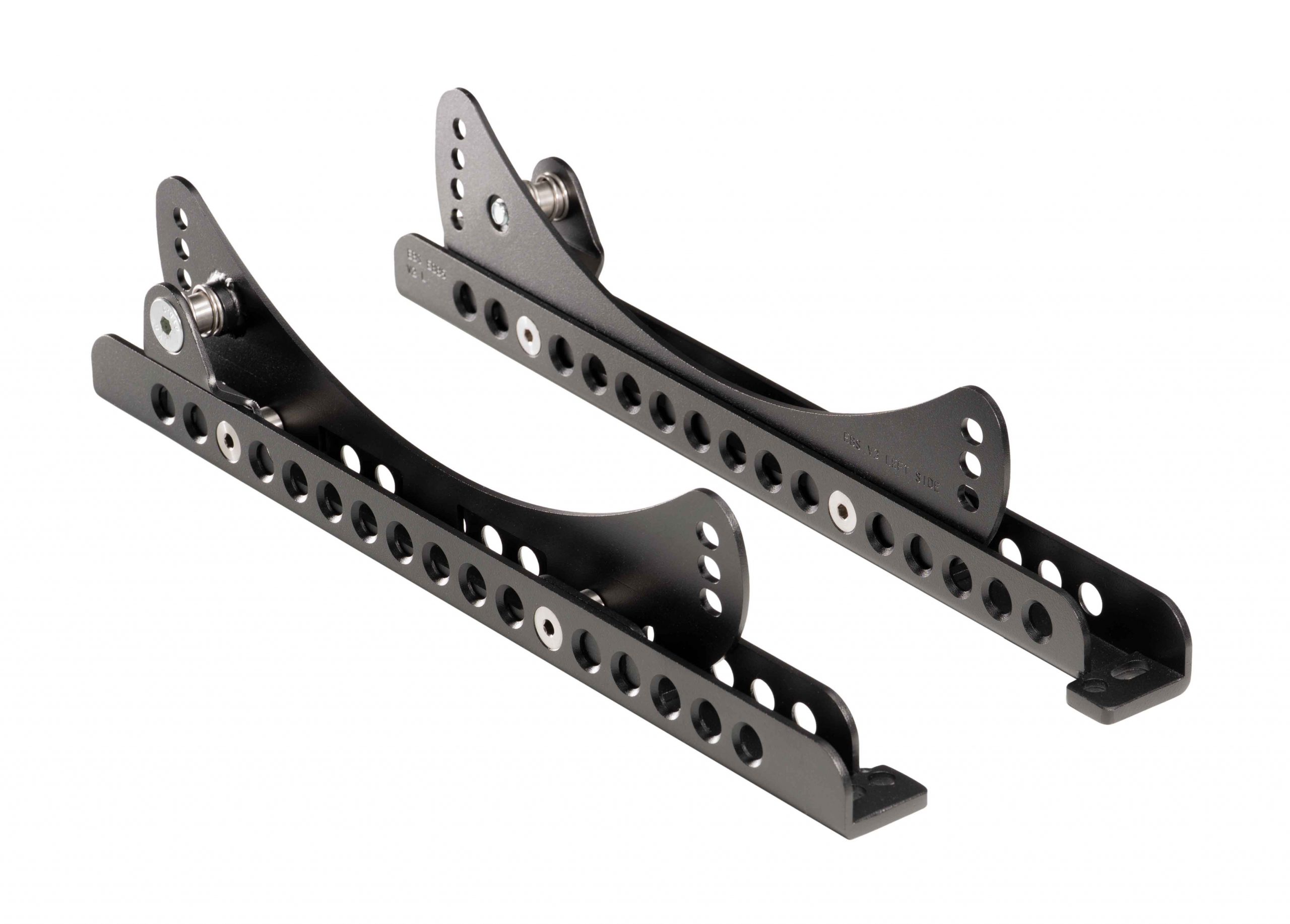

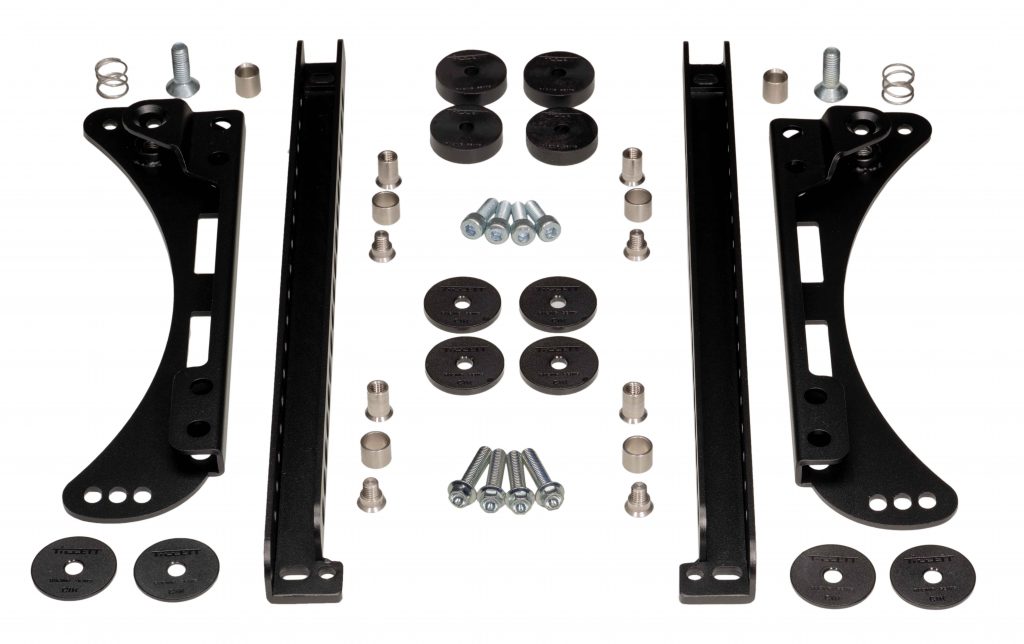

EBS Bracket Set

FIXED LOTUS ELISE/EXIGE BRACKETS. FOR B6 SCREAMER/B6-43 XL SCREAMER/B7-40/B7-44/B8-43/B9-43 LHD & RHD (+ B6, B6-43 XL SIDE MOUNT VERSIONS).

The EBS bracket set is designed to solidly fit Tillett seats in the Elise/Exige.

These steel powder coated brackets are highly adaptable and can fit the seats in either side of both LHD and RHD cars. They will also fit seats in either side of the car. They can use every mm of available space for the ultimate driving position.

The EBS allows adjustment of angle, height, and leg length. The position is adjusted by means of sliding the upper bracket inside a U channel and the length can be fixed every 10mm. The EBS incorporates hip belt mounting points. They are largely 3mm thick steel and are finished in a scratch resistant textured black powder coated finish. The mounting points suit pre 2017 cars with hole spacing from front to back of 383mm and they are double thickness at the mounting points. They have hip belt mounting points designed to take the OEM Lotus brackets or a harness with a buckle hole of 14.1 mm. The EBS V3 has an option of a stepped seat belt retention bush for the smaller 11 mm holes in the buckles in some types of race harnesses. Both types can be mounted at the same time.



KEY FEATURES

  • The EBS bracket set is designed to fit the B6 Screamer/B6-43 XL Screamer/B7-40/B7-44/B8-43/B9-43/B10/(B10-XL 45 on drivers side) in a Lotus Elise/Exige platform car.
  • The brackets can also be used with + B6, B6-43 XL when supplied with optional side mounts.
  • Fits cars manufactured prior to 2017 – VIN serial number 1457.
  • EBS brackets are for both left and right hand drive cars and for either driver or passenger sides.
  • Made from 3mm thick steel with a textured black powder coated finish.
  • For road and track applications.
  • Allows adjustment of angle, height, and leg length.
  • The length of leg is adjusted by sliding the upright bracket along a U channel and the position can be set every 10mm.
  • The EBS V3 incorporates hip belt mounting points for OEM Lotus belts or a race harness.
  • A pair of EBS brackets weigh 2.2kg.
  • Designed & manufactured in the UK.
SKU: EBS Made to Order — 1 weeks

We'll email you once when this item is available. You can unsubscribe at any time.

£299.99 ex VAT

Prices where listed exclude VAT & shipping.
T&C’s apply.
Please contact Customer Service for delivery times.
