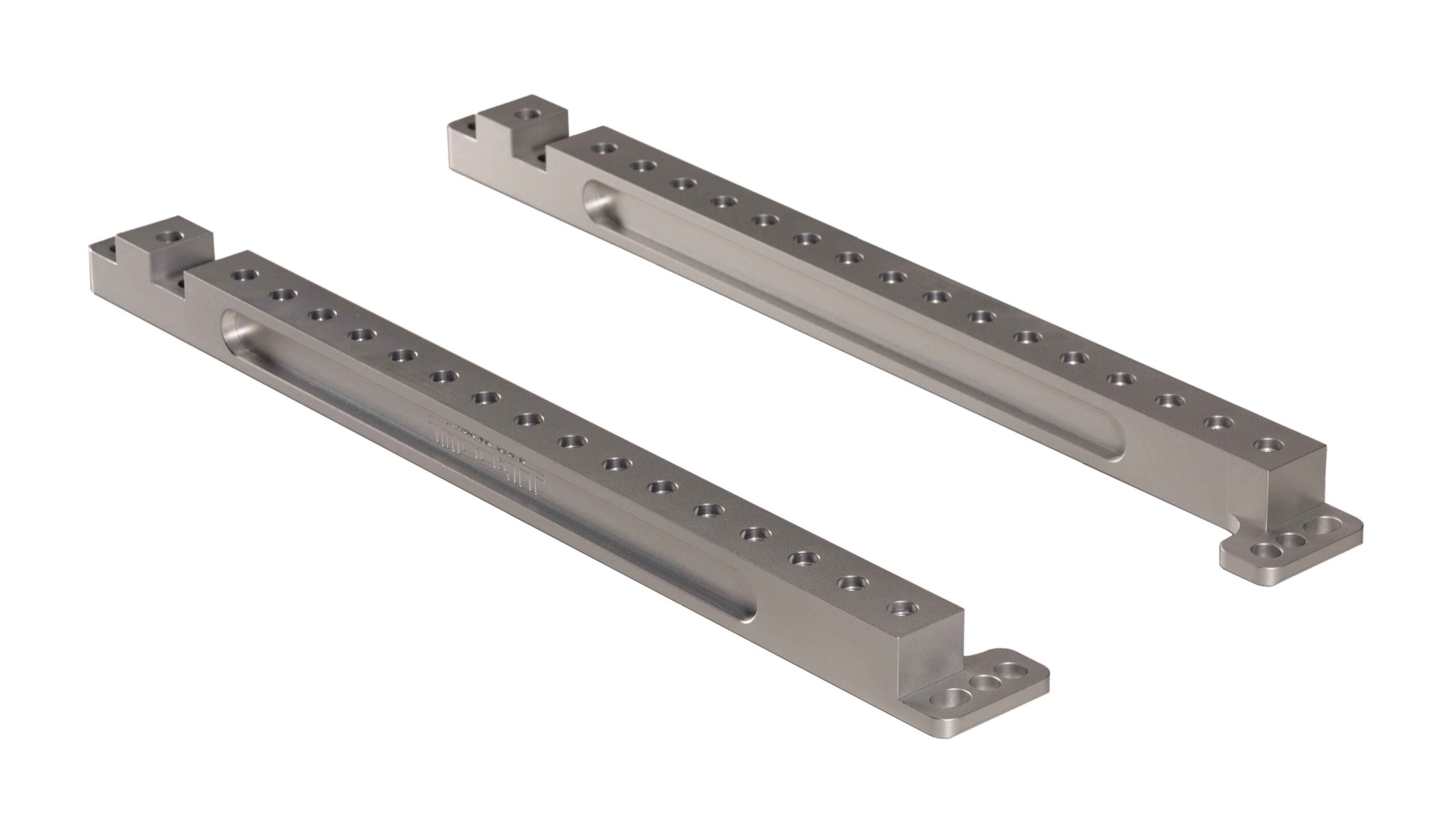

ERAIL for Lotus
ERAIL for Lotus
ERAIL for Lotus

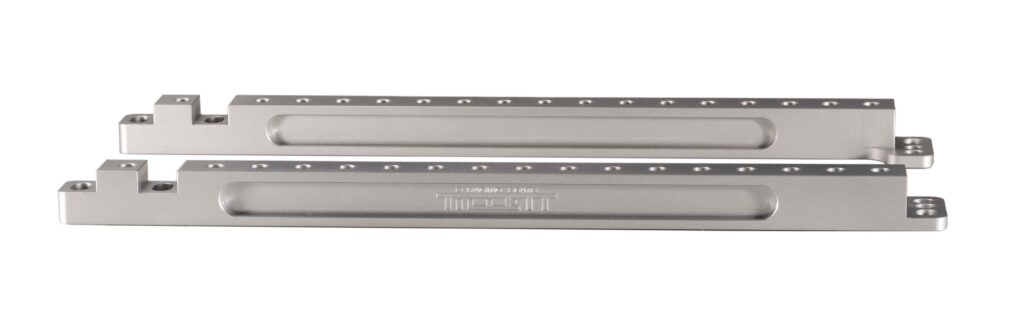

ERAIL side profile.

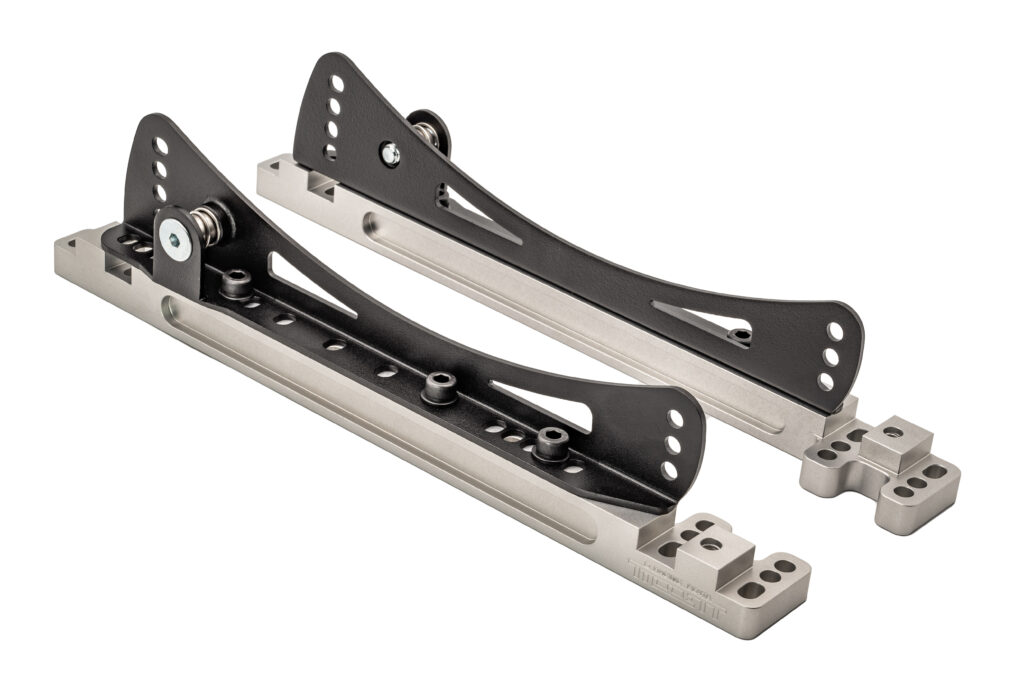

ERAIL with EBR brackets.

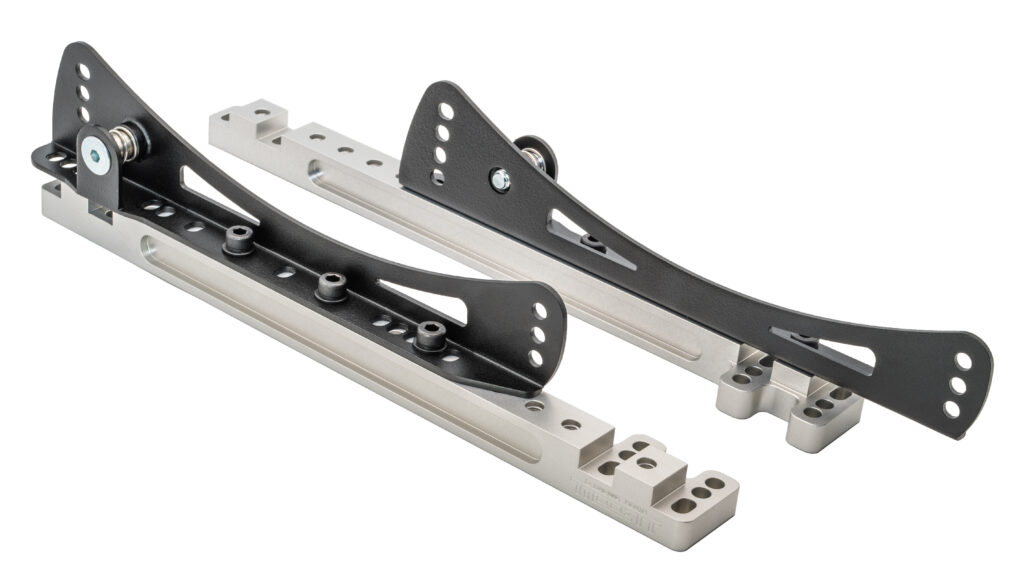

ERAIL with EBR brackets showing adjustment range.
ERAIL for Lotus
ERAIL side profile.
ERAIL with EBR brackets.
ERAIL with EBR brackets showing adjustment range.

ERAIL

New

ERAIL FOR ALL ELISE/EXIGE PLATFORM CARS

Tillett ERAIL – Lotus Elise/Exige Seat Mounting Rails

The Tillett ERAIL is precision-machined from billet aluminium and provides a strong, lightweight and highly adjustable mounting solution for fitting Tillett seats into Lotus Elise and Exige models.

The rails are designed to correspond with the captive floor mounting points found in compatible Elise and Exige platform cars, providing a purpose-designed installation for the Tillett seat and bracket system.

Low and Adjustable Seating Position

The ERAIL replaces the standard Lotus seat runner, allowing the seat to be securely mounted in a fixed position. As the original Lotus adjustment runners are wider than the ERAIL, retaining them can result in a higher seating position.

By removing the standard runner and using the ERAIL system, the seat can be positioned as low as physically possible, helping to maximise cockpit space and optimise the driver’s seating position.

Combined with either the EBR or REBB5 upper steel brackets, the ERAIL provides extensive adjustment. Leg length can be altered in 10 mm increments, making it easier to achieve the ideal driving position.

KEY FEATURES

  • Precision-machined from natural-colour anodised billet aluminium
  • Designed for use with Tillett EBR and REBB5 steel mounting brackets
  • Provides extensive seat-position adjustment in 10mm increments
  • Allows the Tillett seat to be mounted as low as physically possible
  • Suitable for left-hand-drive and right-hand-drive installations
  • Can be fitted to either side of the vehicle
  • Compatible with the EBR bracket when fitting B6 Screamer, B6-43 XL Screamer, B7-40, B7-44, B8-43 and B9-43 seats, as well as standard B6 and B6-43 XL side-mount versions
  • Supplied with eight M8 12.9-grade cap-head mounting bolts
  • Pair of ERAIL rails weighs approximately 1.3 kg

  • Designed and manufactured in the UK

£309.99 ex VAT
FIND YOUR LOCAL DEALER

Prices where listed exclude VAT & shipping.
T&C’s apply.
Please contact Customer Service for delivery times.
